Bifolding Gate CMZD-X2

The Courtyard Folding Gate serves as a multipurpose space-saving barrier that suits contemporary residential and villa doorways and courtyard access points. With its stylish folding design the gate ensures safety through entry points requiring small areas and enabling easy access into tight spaces.

Key Features:

1. Efficient space utilization

Folding gates need less lateral space than both swing gates and sliding gates. Folding gates make excellent choices for space-efficient areas where the available room is restricted. The folding gate opens to become completely flat against the wall surface after the gate opening. The operating mechanism of this gate differs from swing gates since it can open without needing gate opening space and maintains unimpeded movement throughout the entrance area.

2. Strong aesthetics

The high degree of customization. Folding gate structures create conditions for simple customization. The gate dimensions along with the color schemes and patterns alongside glass transparency and glass patterns can be tailored specifically for users based on their requirements along with architectural space factors. This gate solution attains appropriate appearances for all types of villa entrances.

3. Convenient opening method

Folding gates provide high clearance when opened widely because they open to a broad extent. The design works well for moving large items through the opening or managing simultaneous entry and exit operations by numerous persons. Warehouse and logistic centers benefit from folding gates which enable easy movement of equipment including forklifts. Such gates enable fast personnel evacuation during emergencies like fires because they offer extensive opening capabilities.

4. Safety and stability

The aluminum alloy profile structure of the gate body uses mortise and tenon design to achieve stability. A pinching prevention sensor serves as an installable safety measure. A gate equipped with this technology stops its closing movement automatically before an opening is created to protect people and items from pinching injuries. Provide reliable safety.

1. Caimen independently develops built-in shaft

The self-developed built-in gate shaft can bear a weight of 5000-10000KG, and the gate body folds smoothly, stably, reliably, without noise or shaking. Compared with traditional support shafts, wear is reduced by 60% and the service life is increased by 3 times.

Precision casting top shaft, made by high-precision machine tools, has the characteristics of high temperature resistance, low noise, durability and long service life.

2. Caimen independently designs and develops built-in shafts

The self-developed built-in gate shaft can bear a weight of 5000-10000KG, and the gate body folds smoothly, stably, reliably, without noise or shaking. Compared with traditional support shafts, wear is reduced by 60% and the service life is increased by 3 times.

Precision casting bottom shaft, independently developed practical patented technology. 4-layer protection, stable operation, can withstand a weight of 5000-10000kg.

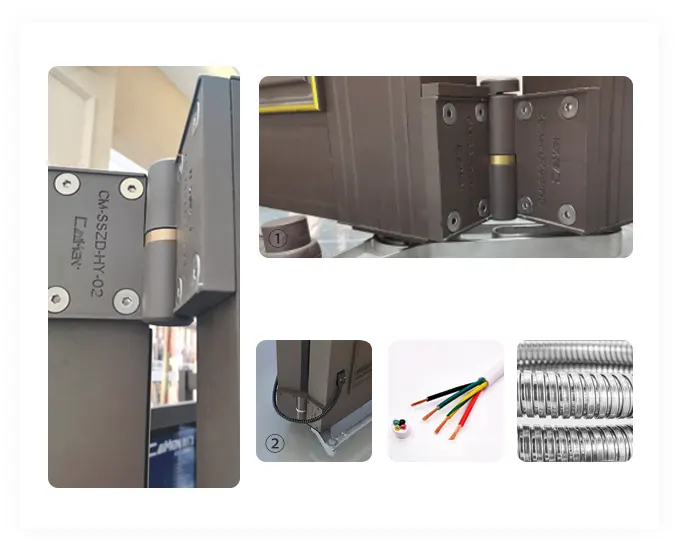

Caimen independently develops the hinge shaft, which is made of 304 stainless steel and cast at 1500℃. It is wear-resistant, rust-proof and anti-oxidation. The tight connection between the 304 stainless steel ball and the bearing effectively ensures smooth, flexible and quiet gate opening. The high-strength and thickened 40mm hinge has strong load-bearing capacity, is not easy to deform and is durable.

1. Folding guide system

Caimen independently develops practical patented technology to achieve integrated double 90° opening and closing of two gate rows, which is quieter and safer.

2. Safe power transmission system

The folding gate safety power supply transmission system consists of 304 stainless steel hose and Caimen customized wires, which are rust-proof, retractable and can be bent without damaging the wires.

Caimen customized 4-core wire: 99.99% oxygen-free pure copper wire

304 stainless steel hose: The material is 304 stainless steel and is used as wire and cable protection tube for wires, cables, and automation instrument signals. It is mainly used for sensor line protection of precision optical rulers and industrial sensor line protection. It has good softness, corrosion resistance, high temperature resistance, wear resistance, and tensile resistance.

Caimen independently develops the hinge shaft, which is made of 304 stainless steel and cast at 1500℃. It is wear-resistant, rust-proof and anti-oxidation. The tight connection between the 304 stainless steel ball and the bearing effectively ensures smooth, flexible and quiet gate opening. The high-strength and thickened 40mm hinge has strong load-bearing capacity, is not easy to deform and is durable.

1. Folding guide system

Caimen independently develops practical patented technology to achieve integrated double 90° opening and closing of two gate rows, which is quieter and safer.

2. Safe power transmission system

The folding gate safety power supply transmission system consists of 304 stainless steel hose and Caimen customized wires, which are rust-proof, retractable and can be bent without damaging the wires.

Caimen customized 4-core wire: 99.99% oxygen-free pure copper wire

304 stainless steel hose: The material is 304 stainless steel and is used as wire and cable protection tube for wires, cables, and automation instrument signals. It is mainly used for sensor line protection of precision optical rulers and industrial sensor line protection. It has good softness, corrosion resistance, high temperature resistance, wear resistance, and tensile resistance.

Infrared warning light and voice reminder

The warning light provides important safety functions. It is a high-brightness flash mode reminder when the vehicle enters and exits the switch. The lampshade of the warning light is designed using the diamond principle, with strong light refraction. It is made of PC material, which is hard, shock-proof and drop-resistant. The material is not easy to fade, and is waterproof and dustproof. The voice engineer professionally customizes the warning voice with clear sound quality.

Infrared anti-collision

Infrared transmitting and receiving sensors are set at the corresponding positions on the outer sides of the gate pillars on both sides. When the gate is closing, if people, vehicles or objects pass between the infrared transmitter and the receiver, the gate will stop running and return automatically.

New leakage protection plug

Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.

Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

New leakage protection plug

Once the leakage current reaches 10 mA, the power supply will be automatically cut off immediately, and the reaction time is less than 0.1 second. The whole is made of flame-retardant engineering plastic, which is resistant to high temperature and ensures safety.

Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

The motor has a compact structure and stable performance. It has a large starting torque and can adapt to frequent forward and reverse rotation. It has an embedded thermal protection device to extend the service life of the gate opener. It has good self-locking performance and can be manually released to realize manual opening and closing of the gate. It can work normally in a low temperature environment of -20℃.

5 Advantages

1. Soft brake                         2. Soft start
3. Motor self-locking           4. Manual clutch
5. Overload protection
