Telescopic Sliding Gate

A space-saving telescopic sliding gate solution called Telescopic Sliding Gate delivers exceptional flexibility and durability and strong safety features for modern schools, hospitals security needs. A high-quality aluminum alloy material builds this gate that showcases an adaptive telescopic sliding operation system that matches different space needs while keeping an elegant design. These gates suit driveways and entrances and are accompanied by space constraints because they employ state-of-the-art technologies and eco-friendly materials to provide dependable access solutions.

Key Features:

Flexible Structure and Strong Adaptability

• The extendable design allows this gate to achieve lengths of up to 14 meters with a height limit of 1.6 meters (that is customizable) through its segmented structure which utilizes either a hinged or pulley-based connection system for controlled operation.
• Design preferences and practical requirements determine how many sections and what dimensions, along with decorative carving extent, will be integrated into custom solutions.

Exceptional Durability and Low Maintenance

• The gate construction starts with top-quality aluminum alloy materials, which receive fluorocarbon powder coating following a two-stage drying and baking process to achieve maximum oxidation resistance.
• This product features a 220V single motor designed with a copper pot whee, which provides stable operation and efficient heat dissipation function across temperatures from -35°C to normal working conditions.
• The gate's basic design, together with its sturdy composition, needs small maintenance throughout the years. Performing routine system inspections and body checks of the gate ensures extended operational life.

Enhanced Safety Features

• The optional anti-pinch technology enables the detection of objects in closing time which results in stoppage or reversal mechanisms to avoid accidents.
• The gate system provides quick emergency-stopping functions to guarantee safety for all users.
• Wind resistance is achieved through a wide chassis connected to I-beam or aluminum alloy rails.

Space-Saving Design

• Thanks to its sliding and folding mechanism, the telescopic sliding gate occupies less space than standard gate designs.
• This equipment suits compact properties because it operates effectively in both directions to access extended gate openings.

Electric Control for Convenient Operation

• The Electric Drive System combines automation with remote controls or buttons and sensor-operated mechanisms for convenient access control functions.
• Through its intelligent control feature, the system enables connections to smart systems which allow remote control access and motion sensor functions and advanced features.
• The display screen located at the gate's front displays operational messages and information through an angled scroll.

Eco-Friendly and Energy-Efficient

• The electric system and advanced intelligent controls function together to reduce energy utilization throughout the system.
• The items comply with modern green building rules through their use of sustainable materials.

Applications:

• Villa entrances and driveways
• Commercial properties with limited space
• The system ensures access control solutions for areas that need maximum security protection.

Optional Add-ons:

The system still offers advanced safety through additional locking technologies and alarm systems.s.

People who use this system can monitor and control their property through smart home systems.

The product allows customers to select customized finishes that accompany decorative elements and color variations, matching any architectural design.

Nano-level wear-resistant wheel

The newly upgraded nano-level wear-resistant large wheels combined with the all-cast aluminum hubs make the overall style full of grandeur, combining excellent performance and beautiful appearance.

1. Ultra-wide four-wheel balancing system

The gate chassis is wide and has good wind resistance. The gate chassis is 680 width, which is more stable and has stronger wind resistance.

2. Windproof design, high safety

The track adopts all-aluminum one-time molding technology, which is durable. Or you can choose a solid galvanized steel track, which can bear 120 tons of vehicle weight.

The track slot fits perfectly with the wind-resistant hook, and the wind resistance performance is improved by 8 times

The guide card can be automatically adjusted up and down to ensure smoother operation of the gate body.

The trackless gate uses magnetic scanning correction to ensure that the gate body runs straight, reduces the friction coefficient, and enhances the service life.

The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.

1. Chain

Anti-aging tests.

2. Wire bracket

Stainless steel 1500 degrees Celsius one-piece molding.

3. Nylon protection wheel

Protect the wires from moving and non-conductive.

4. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.

1. Chain

Anti-aging tests.

2. Wire bracket

Stainless steel 1500 degrees Celsius one-piece molding.

3. Nylon protection wheel

Protect the wires from moving and non-conductive.

4. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

Anti-collision airbag

In the running state, when the airbag is hit by a person or an object, the anti-collision pressure wave is sensed and a signal is transmitted to the main control board through the wireless transmission module. After the main control board receives the signal, the gate body can stop automatically.

1. Infrared anti-collision

Infrared transmitting and receiving sensors should be installed at the corresponding positions of the gateposts at both ends of the gate opening. When the gate is closing, if people, vehicles, or objects are detected passing between the infrared transmitter and the receiver, the gate will stop running and return automatically.

2. Infrared anti-climbing

10 seconds after the gate is closed, if a person or object passes between the infrared transmitting and receiving sensors at the top of the gate, the alarm device will sound an alarm.

1. Independently developed leakage switch

Ensure safety. Leakage protection safety protection function.

2. Emergency stop device

In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.

3. Original design with anti-pinch function

When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.

4. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

1. Independently developed leakage switch

Ensure safety. Leakage protection safety protection function.

2. Emergency stop device

In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.

3. Original design with anti-pinch function

When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.

4. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

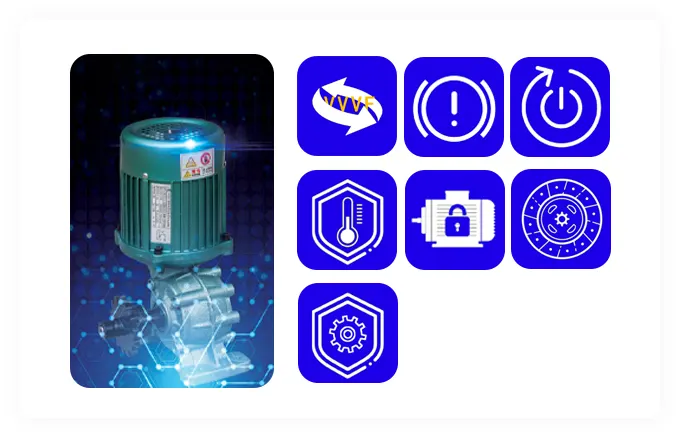

Special motor Aluminum alloy precision die-cast motor housing, good heat dissipation performance; compact structure, stable performance; large starting torque, can adapt to frequent forward and reverse rotation; embedded thermal protection device to extend the service life of the door opener; good self-locking performance, can be manually released to realize manual opening and closing of the door; normal operation in low temperature environment of -35℃.

7 Advantages

1. Frequency conversion             2. Soft brake
3. Soft start                                 4. High temperature protection
5. Motor self-locking                   6. Manual clutch
7. Overload protection
