Automatic Pedestrian Access Gate – ST001
The Automatic Pedestrian Access Gate
The Automatic Pedestrian Access Gate functions as a system for conducting safe secure pedestrian access operations in public areas and private spaces at high efficiency levels. The device combines fast motors and sensitive detectors to allow its passage to be smooth and expedited for each entry. This system enables access through multiple verification modes such as fingerprint scans along with facial recognition QR code scanning and Radio-frequency identification. The product features a sleek modern design and durable construction which makes it perfect for office buildings and both subway stations and residential communities to provide secure entrances with excellent user experience straightforward upkeep and dependable performance.
Key Features
- The system has an automatic continuation feature for bypassing through successive card swipes by users.
- The device operates with high intelligence and safe infrared tracking technology and provides an easy user experience and simple operation capabilities.
- Pedestrians can pass more efficiently through the voice prompt system.
- The equipment operates fast, and its processing capabilities reach new heights.
- Various operational needs can be addressed through adjustments to the gate wing speed settings.
- The gate wing operates freely after a power outage because it lacks resistive forces (beyond its fire evacuation escape design).

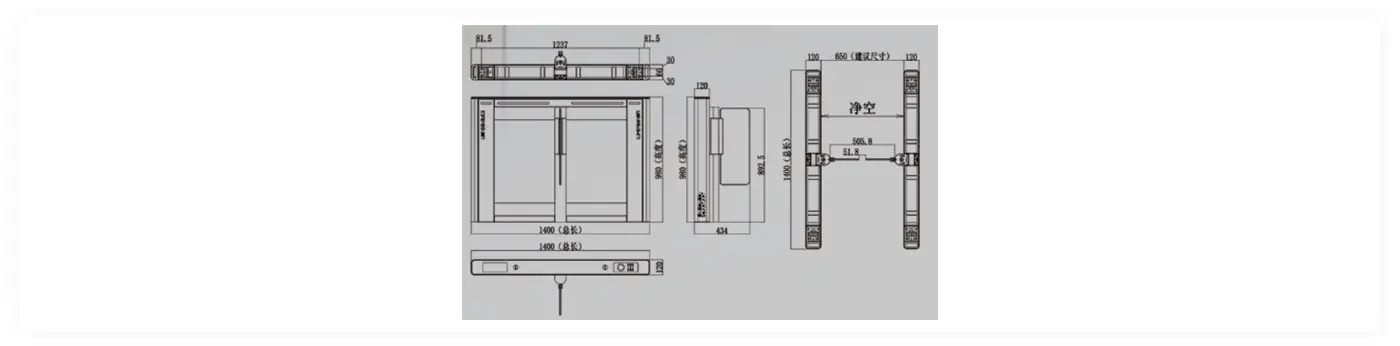

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
Model | Pedestrian gate ST001 |
Size | L1400*W120*H980mm |
Input Voltage | AC220V±10%, 50Hz ~ 60Hz |
Opening Method | RS485/RS232/IO |
Drive Motor | Brushless DC motor (24 ~ 36VDC) |
Work Environment | -30~75℃ |
Operating Humidity | 0~90% (no condensation) |
Gate Working Speed | 30 ~ 50 people/minute (memory mode can be turned on) |
Service Life | Continuous opening and closing more than 5 million times |
Swing Door Material | Transparent acrylic |
Case Material | The shell is made of 304 stainless steel, with brushed surface |
Configuration | 2 single-movement cabinet/2 swing doors/1 pair of master slave control boards/2 sets of brushless drive movements/8 pairs of infrared beams/1 set of power supply |
Passing Time | Passing time after swiping the card: 10 seconds (if no one passes within 10 seconds: the gate will close automatically, and the time can be adjusted as needed) |
Optional | Access control system/card swipe module/QR code module/face recognition device/embedded face recognition module |
Applicable Places | Indoor unit: can be used in: airports, subways, libraries, office buildings, theaters, office buildings, scenic spots, stations, leisure and entertainment venues, etc. |
