Parking Access Controller CP005
The Cloud Parking Smart System represents a detailed intelligent parking service that combines cloud computing with IoT technology and artificial intelligence along with big data analytics capabilities. The system delivers three core benefits through its purpose to optimize parking efficiency while offering better user experiences together with centralized management capabilities.
Key Features:
Smart Parking Guidance
Raymond parking assistance technology combines space detection and correct spot locating to guide drivers toward empty spots which improves their parking effectiveness.
License Plate Recognition (LPR)
The system uses high-definition video cameras along with artificial intelligence recognition capabilities to automatically recognize vehicles for simple parking entry and exit procedures together with automated statements.
Integrated Mobile Payment
Multiple payment options at the facility include WeChat Pay, Alipay, and the addition of UnionPay, and other supported methods which lead to expedited and convenient transactions.
Cloud-based Centralized Management
Various parking facilities link to one single cloud-based system for distant monitoring along with data presentation and live emergency notifications.
Big Data Operational Analytics
The system collects data about vehicle traffic alongside revenue numbers along with usage statistics to help operations become smarter through enhanced performance enhancement.
User App & Mini Program Support
Through mobile applications, users get the ability to search for parking spots before they arrive then book them for payment and inspect their parking record.
Ideal for:
- Commercial Complexes
- Smart Residential Communities
- Hospitals, Schools, and Public Institutions
- Government Facilities & Public Parking Areas
System Advantages:
- Modular deployment for rapid rollout
- High compatibility with various hardware integrations
- The system relies on dependable cloud infrastructure which delivers stability together with security for its operations.
- Customizable with API support for third-party system integration

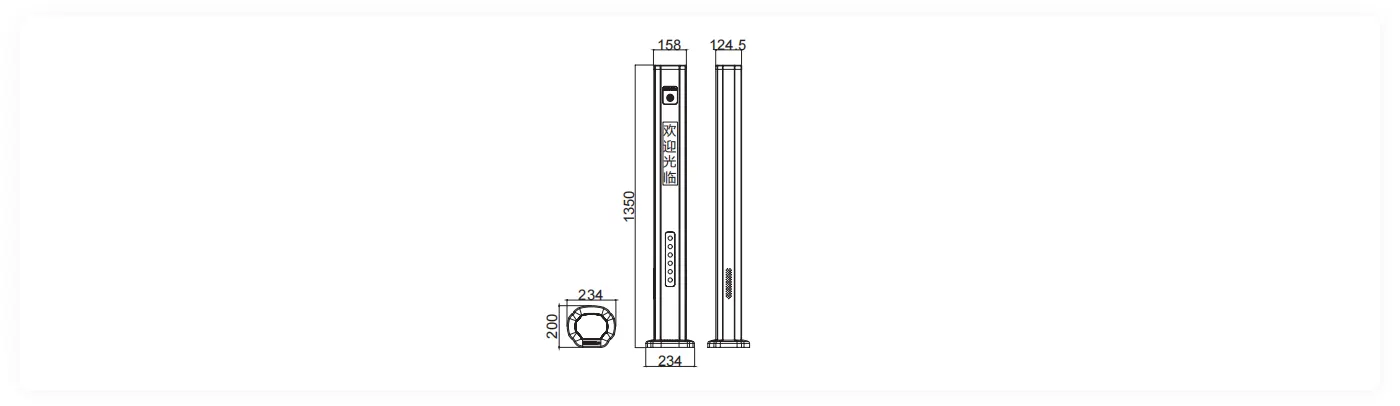

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.
| Model | CP005 |
| Body Size | 234*200*1350(LxWxH) |
| License Plate Recognition Rate | >99.8% (24/7) |
| Display | Industrial-grade two-column vertical high brightness LED screen |
| Text Display | 4 Chinese characters, single row Jianqu (maximum movement display 20 Chinese characters) |
| Camera | 6-12mm lens, 5MP PTZ camera |
| Record Storage Capacity | 30,000 |
| Communication Mode | TCP/IP |
| Input Power | 220V |
| Operating Voltage | 12V |
| Operating Temperature | -25~75℃ |
| Storage and Transportation Temperature | -30~75℃ |
| Operating Humidity | <95%, no condensation (under normal temperature) |
| Storage and Transport Humidity | <95%, no condensation (under normal temperature) |
| IP Level | IPX54 |
