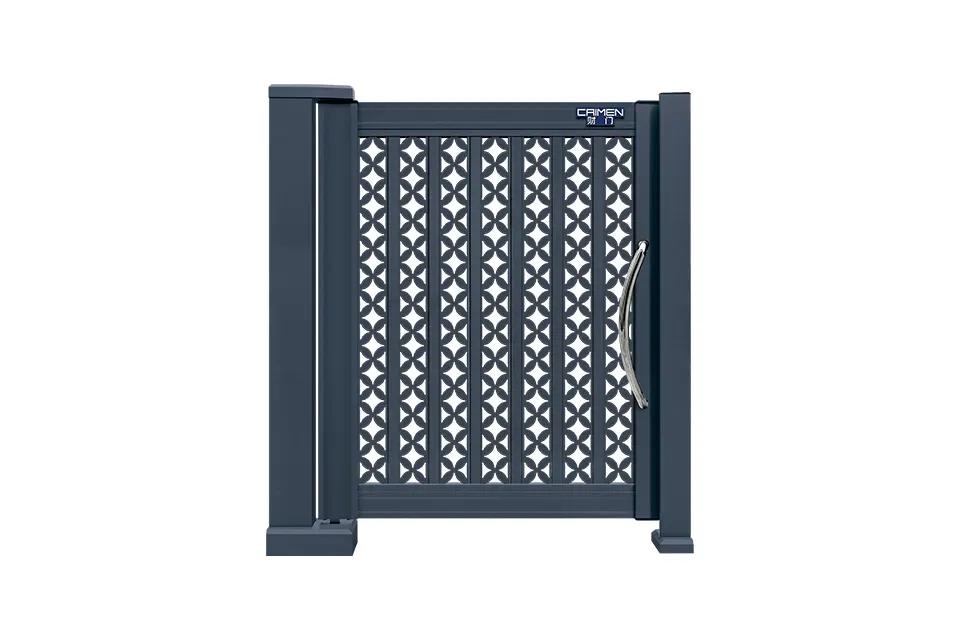

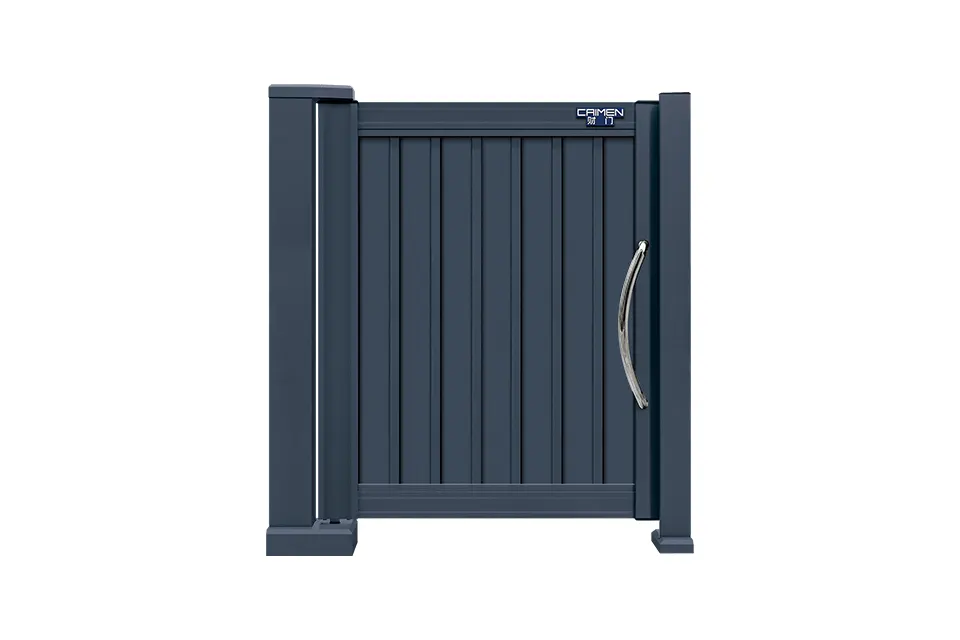

Courtyard Electric Side Gate

Courtyard Electric Side Gate

The Courtyard Electric Side Gate functions as a modern automatic entrance mechanism that delivers both safety along with easy and sophisticated entry to residential courtyards and private entrance areas. This automatic gate system achieves smooth sideward motion while saving floor space because it unites intelligent technology with an attractive appearance to enhance both security and outdoor aesthetics.

Key Features

1. Mortise and Tenon Assembly Structure

Quick and simple dismantling and assembling features characterize this product. Users can open and close the gate leaf between 90° and 180° for simple operation.

2. Built-in Motor

The secure built-in motor brings a better appearance while ensuring maximum safety and dependability.

3. Reliable Operation

The product allows external remote control connection in addition to manual operation through a control box. The control box transfers the action command to the electrical box through a wire after receiving it. The product enables precise and immediate operations by eliminating the signal blocking problems found in electrical boxes as well as building signal bends. The gate uses the detection of open and close limit signals to activate the automatic stopping of its movement.

4. Safety and Anti-Theft

The gate operates with self-locking while in a stopped state, which uses the reduction box worm gear mechanism to prevent external forces from opening it.

5. Leakage Protection

The product implements leakage protection features that safeguard the control system from both overcurrent and overvoltage ground faults.

4oge grounding.

The innovative structure of the top and bottom axis of the CAIMEN side gate makes the gate structure more simple and beautiful, and can achieve an opening and closing angle of 90°-180°.

1. Infrared anti-collision

Infrared transmitter and receiver sensors can be installed at the corresponding positions of the gateposts at both ends of the gate opening. When the gate is closing, if a person, vehicle or object is detected passing between the infrared transmitter and the receiver, the gate will stop running and return automatically.

2. Rebound after encountering resistance

When the gate is closing, if a person or object hits the gate row during closing, the motor receives this signal and sends an obstruction command to the safety system, and the gate will open automatically to avoid damage to people or objects.

Leakage switch

When an emergency stop occurs, the gate motor short-circuits, and the leakage switch plays a certain role to avoid damage to people or objects.

Digital integrated control system

The 10th generation digital integrated control system strictly follows semiconductor manufacturing processes such as oxidation, photolithography, diffusion, epitaxy, and aluminum evaporation. It integrates all the semiconductors, resistors, capacitors and other components and the connecting wires between them required to form a circuit with a certain function on a small piece of silicon wafer. The speed is 5 times faster than the previous generation, and it can be better compatible with various smart devices and realize the necessary equipment for smart AI interaction.

Leakage switch

When an emergency stop occurs, the gate motor short-circuits, and the leakage switch plays a certain role to avoid damage to people or objects.

Digital integrated control system

The 10th generation digital integrated control system strictly follows semiconductor manufacturing processes such as oxidation, photolithography, diffusion, epitaxy, and aluminum evaporation. It integrates all the semiconductors, resistors, capacitors and other components and the connecting wires between them required to form a circuit with a certain function on a small piece of silicon wafer. The speed is 5 times faster than the previous generation, and it can be better compatible with various smart devices and realize the necessary equipment for smart AI interaction.

Intelligent engine drive system

Intelligent special motor
Compact structure, stable performance; large starting torque, can adapt to frequent forward and reverse rotation; embedded thermal protection device, prolong the service life of the gate opener; good self-locking performance, can manually release the self-locking to realize manual opening and closing of the gate; normal operation in low temperature environment of -35℃.

6 Advantages

1. Brushless                         2. Soft brake
3. Deceleration function     4. High temperature protection
5. Motor self-locking           6. Overload protection
