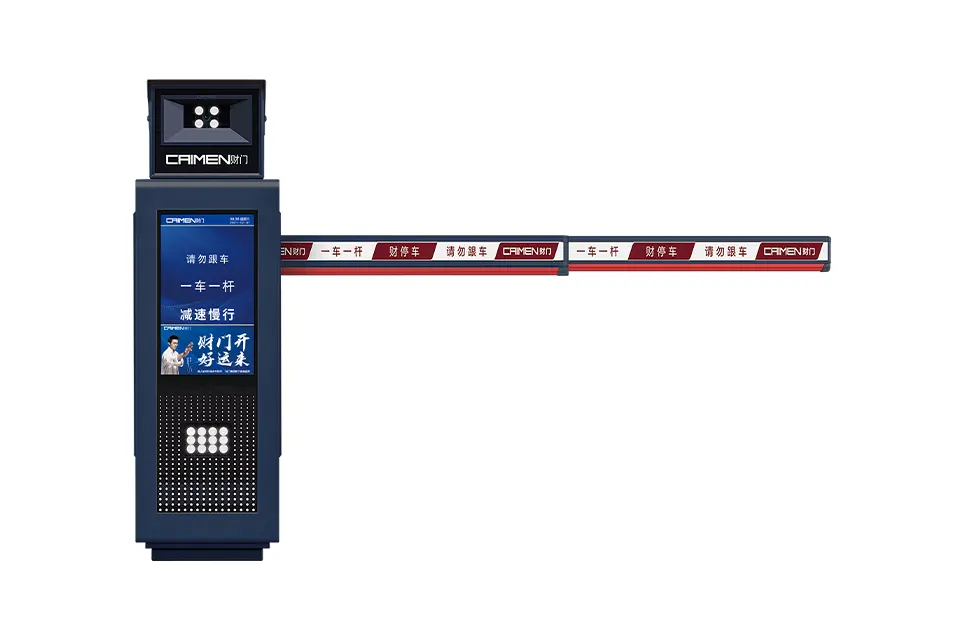

Plate Recognition Boom Gate YTJ001
The Plate Recognition Boom Gate uses advanced license plate recognition technology to manage barriers through an intelligent system resulting in contactless vehicle entry systems. This device functions well across parking lots and residential communities together with commercial complexes. This security system recognizes vehicles by themselves while they enter or leave without requiring any cards or tickets to operate hence creating efficient traffic flow. Its reliable operation along with strong weather resistance enables it to merge with different management systems for advancing intelligent and secure access solutions.
The Plate Recognition Boom Gate implements automatic license plate recognition (ALPR) technology together with barrier gate mechanics to deliver contactless secure access control operations. The parking system works for contemporary facilities with controlled entrances while identifying vehicles speedily and operating gates automatically without active tickets.
🔧 Key Features:
- A full-function integrated lightweight terminal operates as an all-in-one device to fulfill essential needs while needing the least complex installation process.
- This 5-million high-definition recognition device functions as a standalone all-in-one machine that accepts straight and fence poles.
- The equipment can be ordered with an optional LED screen configuration or four-line screen display system.
- Supports customized pole length configuration.
- Recognition distance 3~6 meters (optimal distance)
- Motor power: 160W
- Remote control frequency: 418M Learning code
HD LCD Ads display
22 inch HD LCD display
The system enables different authentication methods for cars with unlicensed plates and licensed plates and plays personalized advertisement images to deliver increased commercial value.
5 million pixel HD recognition
Clear picture quality, intelligent recognition regardless of day or night, high comprehensive recognition rate, rainproof and dustproof.
Recognition speed in seconds
9 9 % recognition accuracy
Advantages
1. License plate recognition 2. Scan code to enter and exit
3. Fill light photosensitive switch 4. Four lines of subtitles
| Model | YTJ001 |
| Size | 450*356*1425(L×W×H) |
| Input Power | 220V |
| Rated Power | 160W |
| Operating Voltage | 24V |
| Operating Current | <5A |
| Operating Temperature | -25~75℃ |
| Storage and Transportation Temperature | -30~75℃ |
| Storage and Transport Humidity | <95%, no condensation (under normal temperature) |
| Operating Humidity | <90%, no condensation (under normal temperature) |
| Camera | YTJ001: 5 megapixel camera; |
| Record Storage Capacity | 50,000 |
| Screen Type | YTJ001: 22-inch HD LCD screen; |
| License Plate recognition Rate | >98% (all-weather) |
| Barrier Pole Type | Straight poles or fence poles |
| Voice Prompts | Support intelligent, situational and customizable voice |
| Mode of Access | License plate recognition, unlicensed vehicles scan QR code to enter and exit |
| Communication Mode | TCP/IP |
| IPX | IPX54 |
