Retractable Gates

The flexible Retractable Gate system serves properties of varied types by saving space and providing security protection. These gates possess a telescopic design which enables them to smoothly expand and retract for adaptable entrance point control. These gates provide long service life because they use harsh weather-resistant materials while operation requires little maintenance. Security installation becomes easier when automatic or manual versions of the system are combined with access control systems. The secure system of retractable gates offers practical functionality with elegant looks that serve different spaces with safety and comfort features.
Retractable Gates
Retractable Gates HONGYUN-01 Dark Gray

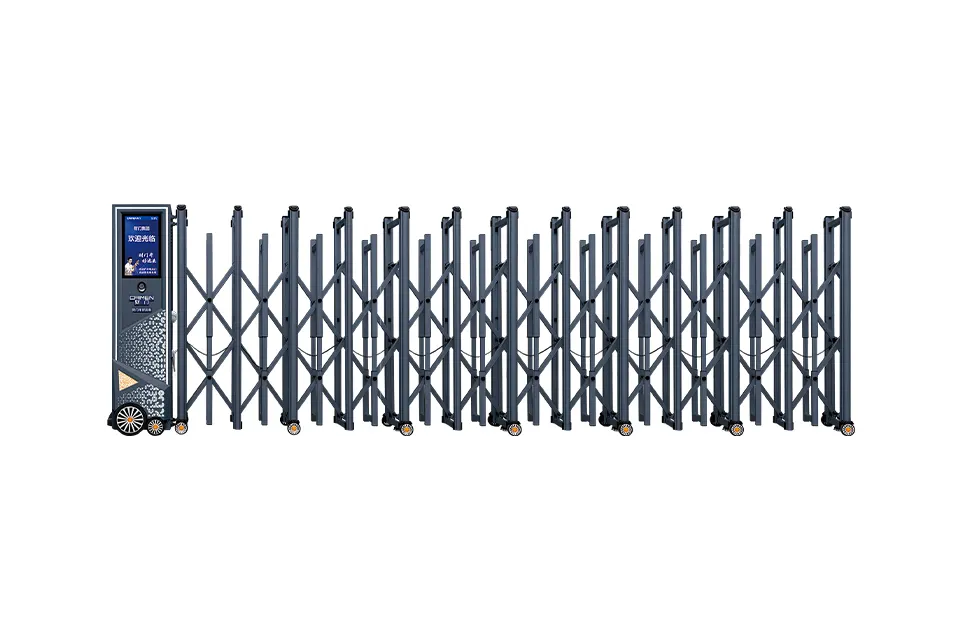

Retractable Gates HONGYUN-02

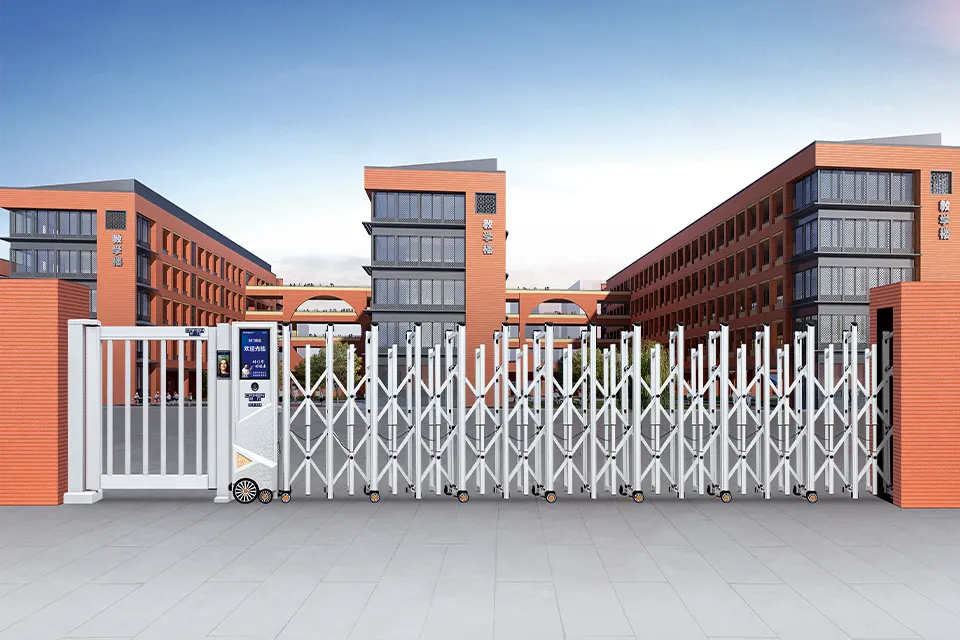

Retractable Gates HONGYUN-02 Flash Silver

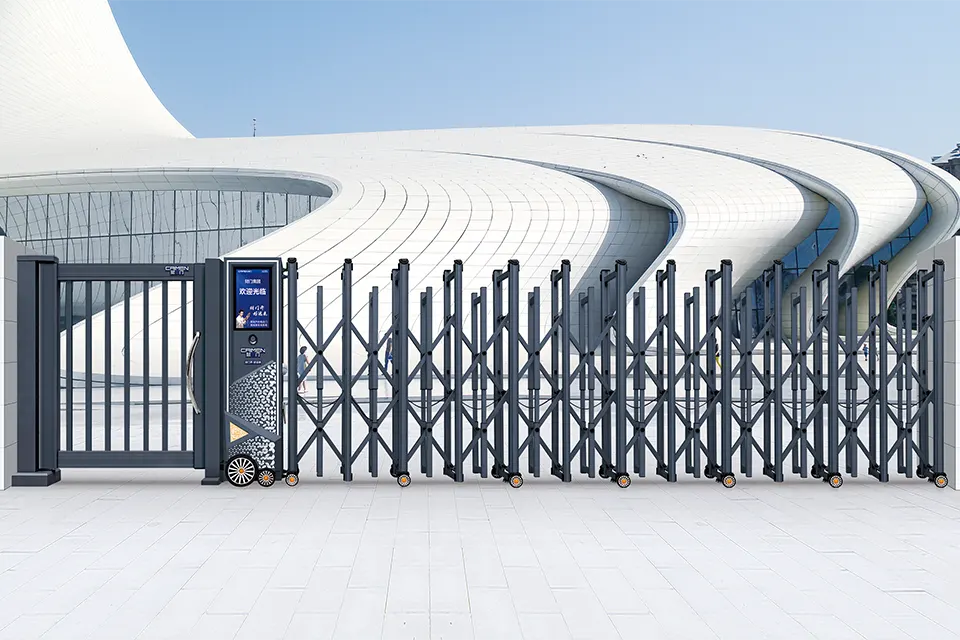

Retractable Gates HONGYUN-02-Dark-Gray.

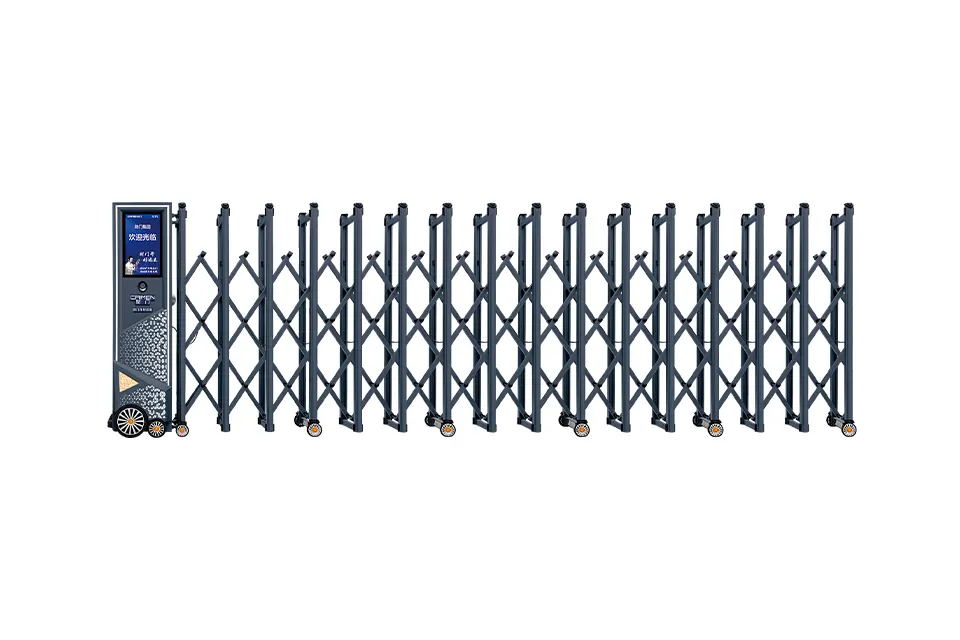

Retractable Gates HONGYUN-03

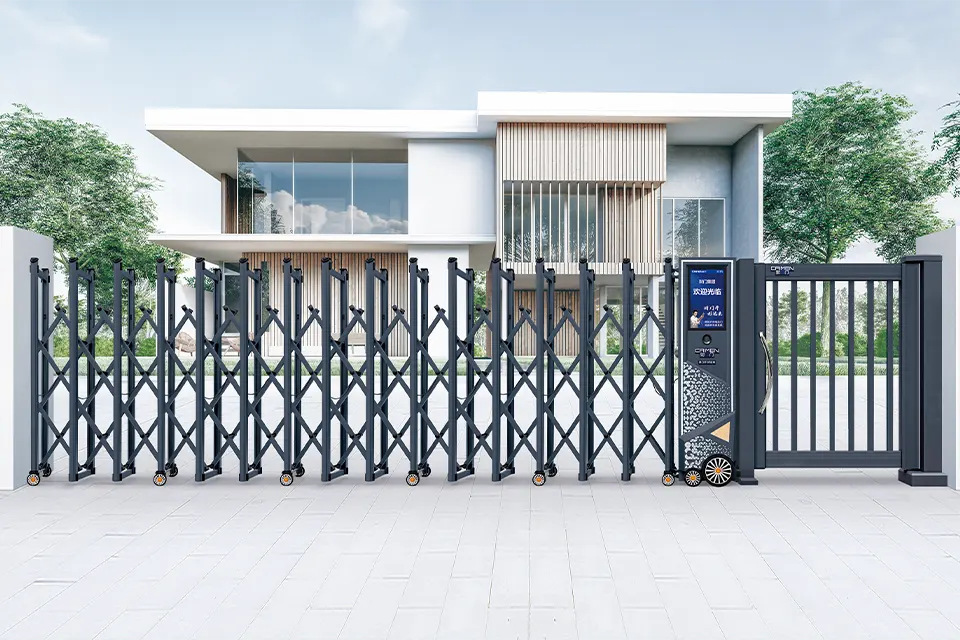

Retractable Gates HONGYUN-03 Dark Gray
1 / 7
Retractable Gates
Retractable Gates HONGYUN-01 Dark Gray
Retractable Gates HONGYUN-02
Retractable Gates HONGYUN-02 Flash Silver
Retractable Gates HONGYUN-02-Dark-Gray.
Retractable Gates HONGYUN-03
Retractable Gates HONGYUN-03 Dark Gray
Model: HONGYUN-01 / 02 / 03
Gate Row Height: 1.6m
Materal: Aluminum Alloy
Surface Treatment: Fluorocarbon powder coating
Product Color: CM-01 gray (customizable)
Custom Styles: Gate row plate styles and decorative parts can be customized.
Flexible Security for Every Space

Modern security barriers named Retractable Gates provide space-saving access control through their adaptable design features. The telescopic or folding design of retractable gates provides smooth extension and retraction motion for residential, commercial, and industrial protection purposes.

Key Features:

Expandable, Telescopic Design

Gates can stretch to their full size during operation yet return compactly after usage, which creates room for enhanced access.

Automatic or Manual Operation

The product line includes fully motorized versions with remote control, keypad, and smart access options, and basic affordable manual models.

Durable Construction

The product design combines high-strength stainless steel or aluminum alloy materials with anti-corrosive finishes, which make the system ideal for outdoor and high-traffic facilities.

Flexible Configurations

Different property needs and site requirements can be addressed through adjustable rail lengths along with customizable heights and various available rail designs.

Safety Features

Their operational features include anti-collision sensors, auto-stop, manual override, emergency release systems, and more.

Ideal Applications:

  • Residential Compounds & Villas
  • Schools, Hospitals, and Government Facilities
  • Commercial Buildings & Warehouses
  • Parking Entrances & Industrial Parks
  • Event Venues or Temporary Access Points

Benefits:

  • Space-saving and easy-to-operate
  • Enhances perimeter security
  • Quick installation and low maintenance
  • Scalable for large or small entrances
  • The product features contemporary looks compatible with modern building architecture designs.

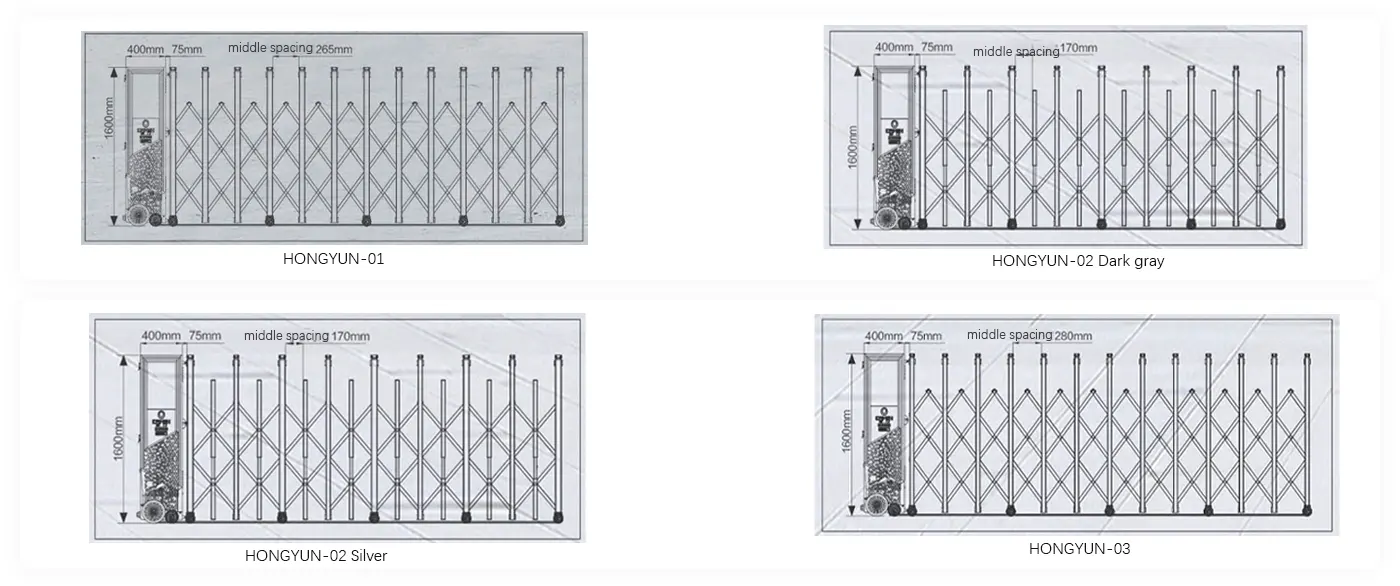

Product Diagram

All dimensions are in mm. The schematic diagram takes one of the models as an example and is for reference only.



Material Specification



NO. 1 2 3 4 5 6 7 8 9
Name Bottom Bean Top Bean Main Gate Pillar Auxiliary Gate Frame Auxiliary Gate Pillar Gate Row Bar Gate Vertical Bar Decoration Part Gantry
Material 6005-T5 6005-T5 6063-T5 6063-T5 6063-T5 6063-T5 6063-T5 6063-T5 6063-T5
Size (mm) 140*83*4.0 140*83*4.0 100*100*3.0 76*25*1.5 76*76*1.5 47*37*1.3 47*37*1.3 AI casting 127*83*2.5
Surface Treatment Fluorocarbon powder coating
