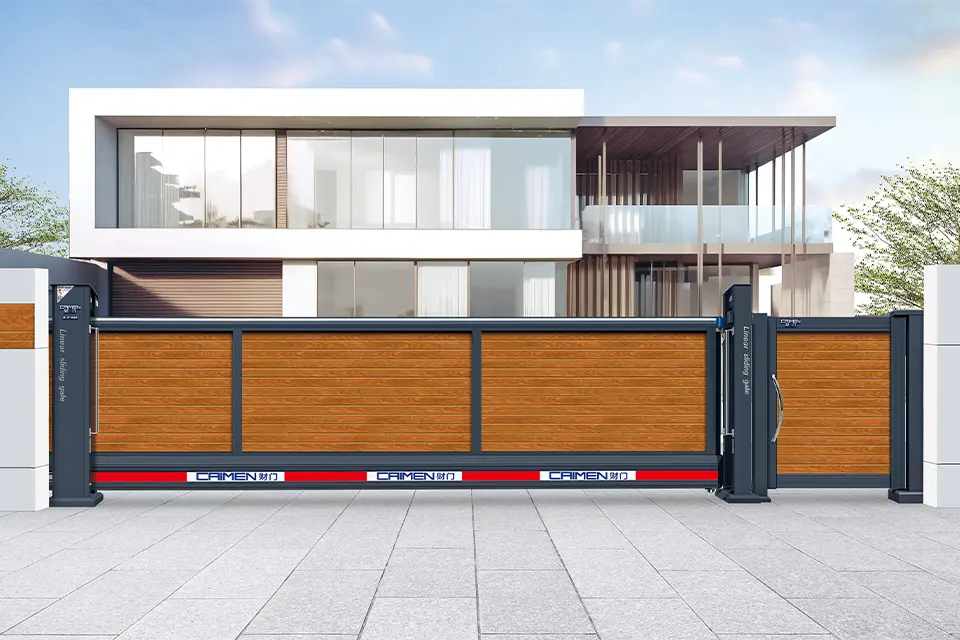

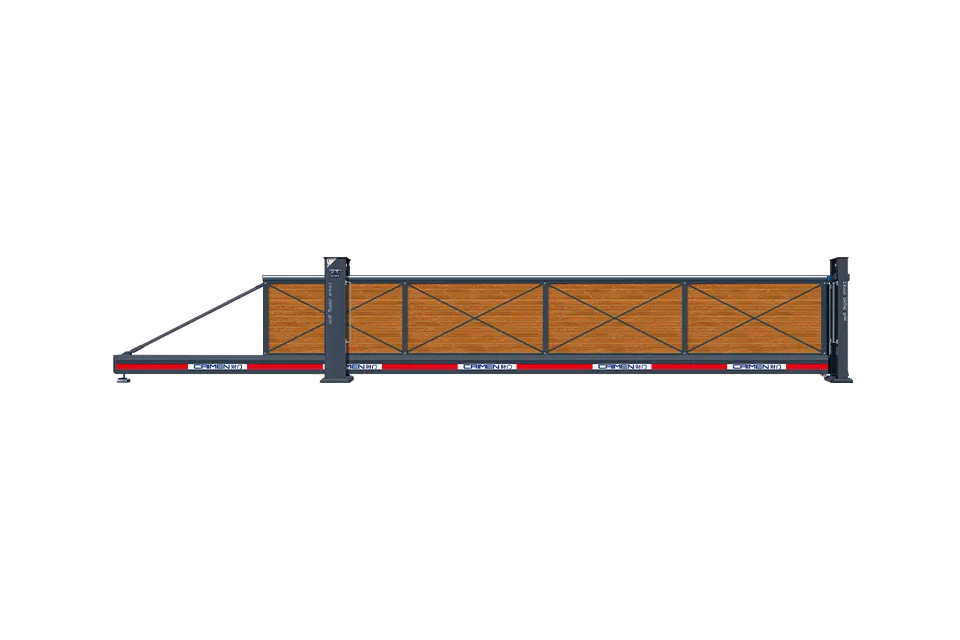

Telescopic Cantilever Gate

The Telescopic Cantilever Gate serves as an innovative product that combines security. Therefore it provides efficient access for locations which need narrow gate clearance and restricted driveways. Also, this gate opens entirely through its telescopic sliding method which as a result makes it appropriate for spaces where common gate designs do not function properly.

🔧 Key Features:

Space-Efficient Telescopic Design

Built with a sliding gate mechanism this product lets the diverse gate panels overlap into a compressed vertical position while completely open thus conserving more space than normal swinging or sliding gate systems.

Cantilevered Operation

The cantilever construction enables the gate to function without tracks on the floor which guarantees effortless movement across various ground types including gravel, snow or damaged areas.

Durable and Robust Construction

The construction of these gates relies on high-quality materials such as powder-coated steel or aluminum which provides outstanding strength while fighting against weather conditions and requires virtually no upkeep.

Automated or Manual Operation

This device exists in two versions: users can select automated motor operation for enhanced user experience with remote control or keypad access or manual operation for small-size applications that lack high foot traffic.

Safety Features

This product comes with sensors that prevent collisions between vehicles while also minimizing crushing risks. Vehicle detection loops and emergency manual override options provide additional control together with increased protection systems to the security system.

Customizable Aesthetic

You can find these barriers in numerous aesthetic options that match different building designs along with multiple finish types and multiple color selection options. External components allow users to match the design of traditional as well as contemporary buildings.

Ideal Applications:

Residential Driveways and Villas

Commercial Properties & Industrial Yards

Gated Communities

Airports, Railway Terminals, or Logistics Centers

High-Security Areas with Limited Space

Key Benefits:

The space-saving design makes this product suitable for tight driveways because the mechanism operates without ground track or swing radius requirements.

Easy Operation: Smooth and effortless movement, with the option of automated or manual control.

This product design represents strong weather resistance because it functions well in environments experiencing heavy rainfall and snowfall and experiencing fluctuating temperatures.

The cantilever construction design enables minimal ownership costs which do not require routine track maintenance tasks.

Secure and Safe: Provides a high level of security with robust construction and integrated safety features.

1. Save space

The support structure of a cantilever sliding gate operates independently from tracks on the ground as the gate body moves along the structure without touching the ground. Cantilever sliding gates provide superior space efficiency in contrast to traditional swing gates because they slide parallel to structures instead of rotating and therefore require no space for gate movement before or after operations. Thus these gates support scenarios with limited space including passage openings as well as entryways by parking spaces.

2. High applicability

This trackless system becomes an excellent choice for locations that experience water conditions and ice and snow accumulation or contain muddy terrain. The system operates on all types of terrain in fact on sloped areas and degraded or blocked sites.

3. High safety

Anti-collision technologies together with sensors and anti-pinch mechanisms among other safety features are standard equipment in these systems. Above all, built-in locking mechanism enhances theft protection and stops unapproved persons from entering the site.

4. Convenient operation

This system operates as part of smart home technology and security monitoring systems by enabling both local and remote control.

5. Easy maintenance

The gate requires no track maintenance because it operates without ground contact. A periodic inspection of the cantilever system and rollers should be performed to maintain smooth operation of the gate body.

6. Beautiful and diverse design

The gate design presents itself in a rustic style which works well for industrial zones along with commercial areas and residential properties. A selection of color schemes and design styles exists which users should consider between functionality and appearance needs.

It is composed of a correction wheel, a tail lever, a limit sensing system, and an inner guide wheel to ensure that the gate moves in a straight line without shaking.

1. Correction wheel

Prevent gate shaking and wear.

2. Tail lever

Hexagonal aluminum alloy profiles, upper and lower fixings, and 304 large M20 screws are used to ensure that the gate body does not sag during operation.

3. Inner guide wheel

It is composed of nylon wheels, precision cast sheet metal and bearings, which can reduce the friction coefficient of the gate body, improve the stability and life of the gate body, and reduce noise.

4. Limit sensing system

The induction gate body operates in place to reduce excessive motor operation.

The safety power supply transmission system of the suspended gate is composed of a customized leakage switch, customized wires and nylon wheels, ensuring more stable power supply, wear resistance, no leakage, and preventing safety accidents.

1. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

2. Nylon protection wheel

Reduce contact between motor components and door row, non-conductive.

The safety power supply transmission system of the suspended gate is composed of a customized leakage switch, customized wires and nylon wheels, ensuring more stable power supply, wear resistance, no leakage, and preventing safety accidents.

1. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

2. Nylon protection wheel

Reduce contact between motor components and door row, non-conductive.

1. Infrared anti-climbing

10 seconds after the door is closed, if a person or object passes between the infrared transmitting and receiving sensors at the top of the door, the alarm device will sound an alarm.

2. Anti-collision function

When the door is closing, if a person or object passes between the door's infrared transmitting and receiving sensors, the alarm device will sound an alarm and the door will automatically stop and return.

3. Emergency stop device

In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.

4. Anti-pinch function

When the door is in operation, if the airbag inside the door is hit by a person or an object, the door will stop operating immediately.

1. Safety airbag

In the running state, when the airbag is hit by a person or an object and the anti-collision pressure wave is sensed, the door body can automatically return to run for about 1 meter and then stop running.

2. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

1. Safety airbag

In the running state, when the airbag is hit by a person or an object and the anti-collision pressure wave is sensed, the door body can automatically return to run for about 1 meter and then stop running.

2. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

Over one million investment, 3 years of continuous design improvement

Aluminum alloy precision die-casting housing, good heat dissipation performance; Compact structure and stable performance; large starting torque, able to adapt to frequent forward and reverse rotation; embedded thermal protection device to extend the service life of the door opener; good self-locking performance, can manually release the self-locking to realize manual opening and closing of the door; normal operation at low temperature of -35℃.

7 Advantages

1. Brushless                         2. Soft brake
3. Deceleration function     4. High temperature protection
5. Motor self-locking           6. Manual clutch
7. Overload protection
