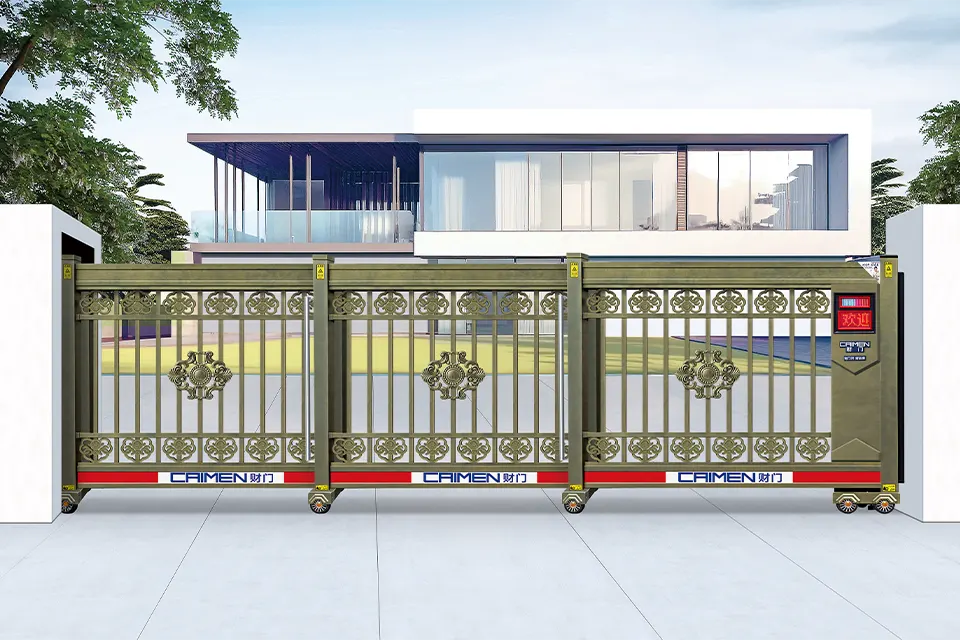

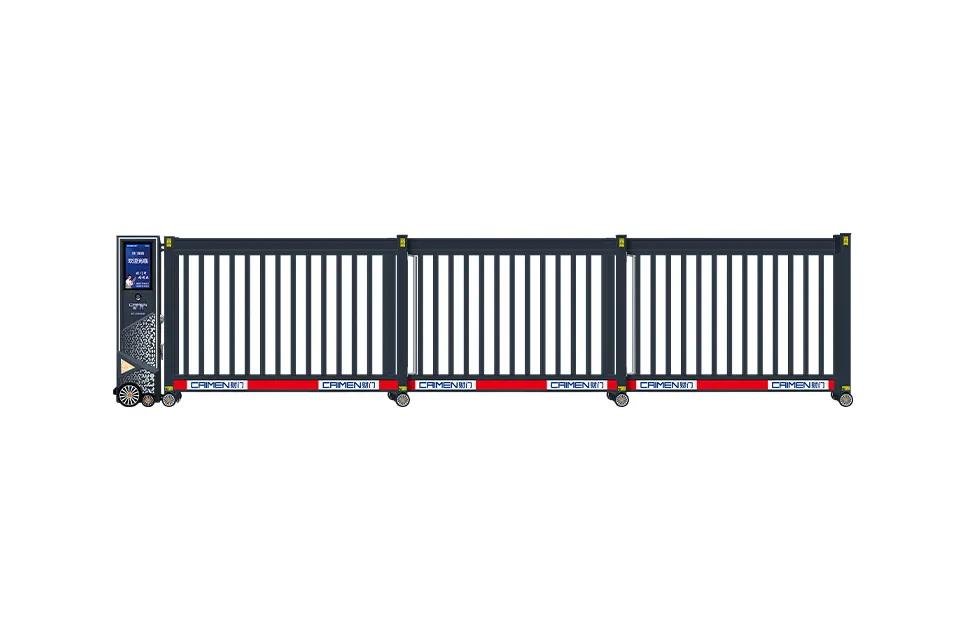

Telescopic Gate

The Telescopic Gate brings efficient access control to spaces which need to optimize tight clearance areas and restricted driveway spaces. The telescopic sliding functionality enables the gate structure to stack numerous panels during opening so it can occupy minimal space and provides both enhanced security and functional convenience.

Key Features

1. Flexible structure and strong adaptability
The series design format gives customers the ability to select gate bodies extending up to 14 meters in length and reaching heights of 1.6 meters (custom orders are possible). The gate body allows division into 2-6 sections which connect through either hinge or pulley systems. The structure of the gate body becomes more adaptable during opening and closing operations because of this design which meets diverse requirements.
User requirements determine how customizations should happen through gate section number and size choices along with decorative elements which create multiple design options.

2. Strong durability and low maintenance cost
The gate structures utilize high-quality aluminum alloy components for all their surface applications. Using fluorocarbon powder in the coating process involves two drying and two baking stages to deliver a product with excellent oxidation resistance and corrosion protection. This motor 220V single motor copper pot wheel maintains compact structure together with stable performance and excellent heat dissipation features that enable it to operate normally even at -35℃ low temperature conditions.
Due to its basic design and solid gate components, the associated maintenance expenses stay minimal. Long-term use becomes possible through periodic checks of both electric systems and gate bodies.

3. High safety
An additional anti-pinch function remains an optional equipment option. A gate equipped with an anti-pinch function will detect obstacles during its closing process to stop movement or shift direction thus protecting people and objects from pinching.
The gate system implements an emergency stop procedure which establishes automatic maneuvers for stopping operations or conducting safety treatments upon emergencies in operation. The wide gate chassis works with either I-beam rails or aluminum alloy rails providing strong resistance to wind.

4. Save space
Sectional electric gates save valuable ground space because they slide and fold during operation which eliminates the need for gate body area and works best in tight spaces. These gate bodies function in two different directions when adjusting for spaces that need gate opening clearance beyond typical sizes.

5. Electric control, convenient operation
The electric drive system operates automatically to both open and close the equipment. Users control gate operations by operating either remote controls and buttons or through installed sensors which eliminate conventional manual work.
The system offers intelligent controls which include features like remote control as well as intelligent sensing and more so operations become both accessible and efficient. A scrolling display screen faces the gate body where operation-related information scrolls during operation.

6. Environmental protection and energy saving
The system employs an energy-efficient electric and intelligent control system to minimize energy usage.
The production incorporates environmental protection materials to comply with the modern building requirements regarding green environmental protection..

Nano-level wear-resistant wheel

The newly upgraded nano-level wear-resistant large wheels combined with the all-cast aluminum hubs make the overall style full of grandeur, combining excellent performance and beautiful appearance.

1. Ultra-wide four-wheel balancing system

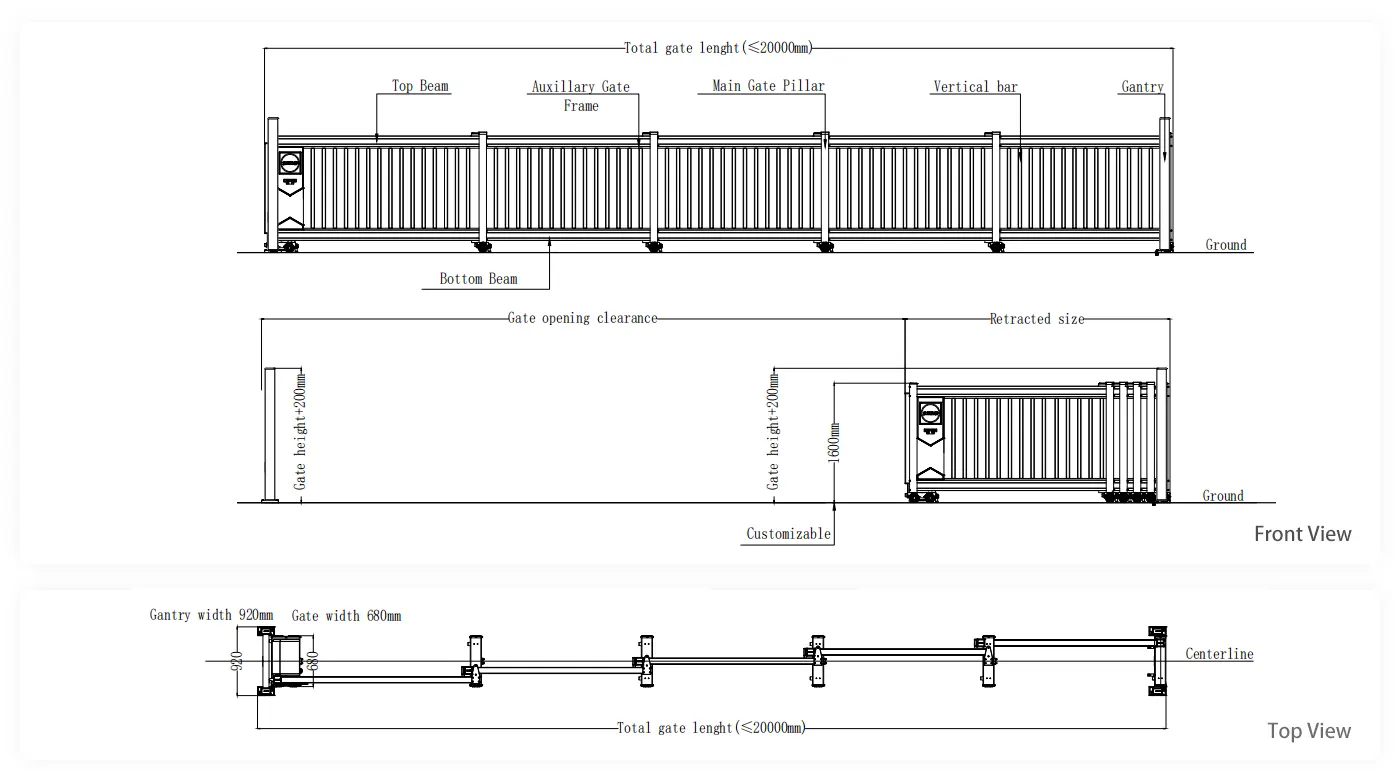

The gate chassis is wide and has good wind resistance. The gate chassis is 680 width, which is more stable and has stronger wind resistance.

2. Windproof design, high safety

The track adopts all-aluminum one-time molding technology, which is durable. Or you can choose solid galvanized steel track, which can bear 120 tons of vehicle weight.

The track slot fits perfectly with the wind-resistant hook, and the wind resistance performance is improved by 8 times

The guide card can be automatically adjusted up and down to ensure smoother operation of the gate body.

The trackless gate uses magnetic scanning correction to ensure that the gate body runs straight, reduce the friction coefficient, and enhance the service life.

The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.

1. Chain

Anti-aging tests.

2. Wire bracket

Stainless steel 1500 degrees Celsius one-piece molding.

3. Nylon protection wheel

Protect the wires from moving and non-conductive.

4. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

The gate safety power supply transmission system consists of a chain, a wire bracket, a custom-made wire from Caimen, and a nylon wheel to ensure that the wires are not disconnected, worn, or leaked.

1. Chain

Anti-aging tests.

2. Wire bracket

Stainless steel 1500 degrees Celsius one-piece molding.

3. Nylon protection wheel

Protect the wires from moving and non-conductive.

4. Caimen customized 3-core wire

99.99% oxygen-free pure copper wire.

Anti-collision airbag

In the running state, when the airbag is hit by a person or an object, the anti-collision pressure wave is sensed and a signal is transmitted to the main control board through the wireless transmission module. After the main control board receives the signal, the gate body can stop automatically.

1. Infrared anti-collision

Infrared transmitting and receiving sensors should be installed at the corresponding positions of the gateposts at both ends of the gate opening. When the gate is closing, if people, vehicles or objects are detected passing between the infrared transmitter and the receiver, the gate will stop running and return automatically.

2. Infrared anti-climbing

10 seconds after the gate is closed, if a person or object passes between the infrared transmitting and receiving sensors at the top of the gate, the alarm device will sound an alarm.

1. Independently developed leakage switch

Ensure safety. Leakage protection safety protection function.

2. Emergency stop device

In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.

3. Original design with anti-pinch function

When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.

4. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

1. Independently developed leakage switch

Ensure safety. Leakage protection safety protection function.

2. Emergency stop device

In the running state, in case of emergency, the power supply can be quickly cut off through the emergency stop switch to achieve emergency stop and ensure safety.

3. Original design with anti-pinch function

When the gate is open and in operation, if the anti-pinch device on the inner side of the gate is pressed by a person or an object, the gate will stop operating immediately.

4. Digital integrated control system

The 10th generation digital integrated control system is 5 times faster than the previous generation, and is more compatible with various smart devices, making it a necessary device for smart AI interaction.

Special motor Aluminum alloy precision die-cast motor housing, good heat dissipation performance; compact structure, stable performance; large starting torque, can adapt to frequent forward and reverse rotation; embedded thermal protection device to extend the service life of the door opener; good self-locking performance, can be manually released to realize manual opening and closing of the door; normal operation in low temperature environment of -35℃.

7 Advantages

1. Frequency conversion             2. Soft brake
3. Soft start                                 4. High temperature protection
5. Motor self-locking                   6. Manual clutch
7. Overload protection
